Bucket Forks
Description

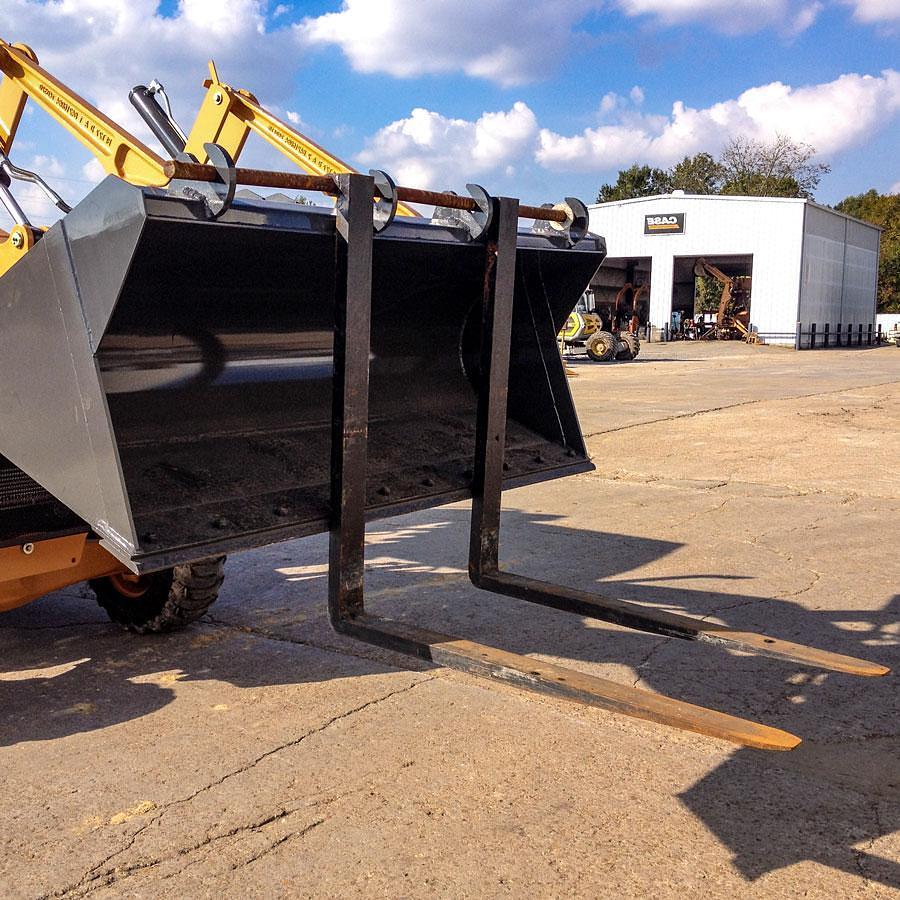

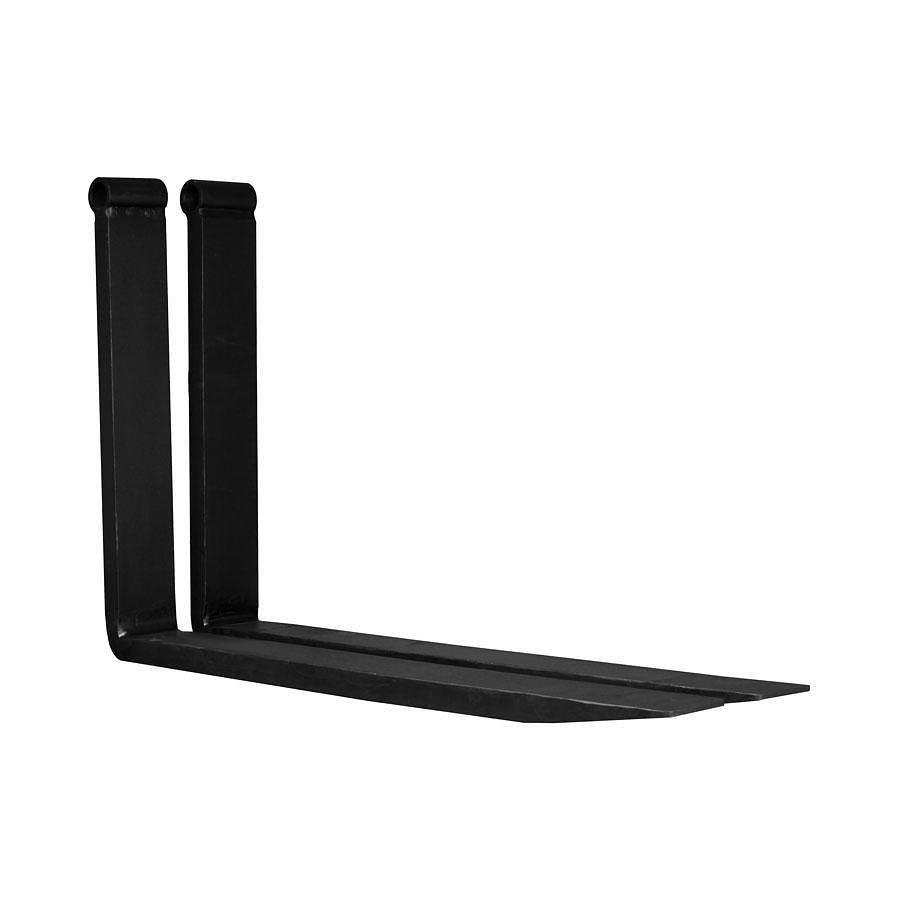

Bucket Forks
Bucket forks allow bucket mounted loaders to quickly provide the lifting capabilities of a forklift or pallet forks without the need to switch machines or attachments. All forks are made of a premium steel blend and subjected to a full heat treatment process. This extends the life of the fork by reducing damage from impact and stress, especially in cooler climates.
*Bucket sold separately
Features
| Product # | Shaft Diameter | Size | Back Height | Loader Cap. | Brackets | Bucket | |
| Opening | Width | ||||||
| 70B1500-36 | 1" | 1-3-36 | 30" | 1500 lb | 3 | up to 27" | up to 54" |
| 70B1500-42 | 1" | 1-3-42 | 30" | 1500 lb | 3 | up to 24" | up to 54" |
| 70B3500-42S | 2" | 150-3-42 | 42" | 3500 lb | 3 | up to 36" | up to 55" |
| 70B3500-42 | 2" | 150-3-42 | 48" | 3500 lb | 3 | up to 42" | up to 55" |
| 70B3500-48S | 2" | 150-3-48 | 42" | 3500 lb | 3 | up to 36" | up to 55" |
| 70B3500-48 | 2" | 150-3-48 | 48" | 3500 lb | 3 | up to 42" | up to 55" |
| 70B4500-42S | 2" | 150-4-42 | 42" | 4500 lb | 4 | up to 36" | up to 72" |
| 70B4500-42 | 2" | 150-4-42 | 48" | 4500 lb | 4 | up to 42" | up to 72" |
| 70B4500-48S | 2" | 150-4-48 | 42" | 4500 lb | 4 | up to 36" | up to 72" |
| 70B4500-48 | 2" | 150-4-48 | 48" | 4500 lb | 4 | up to 42" | up to 72" |
| 70B6000-48S | 2" | 175-4-48 | 48" | 6000 lb | 4 | up to 42" | up to 72" |
| 70B6000-48 | 2" | 175-4-48 | 55" | 6000 lb | 4 | up to 49" | up to 72" |
| 70B8000-48S | 2" | 2-4-48 | 48" | 8000 lb | 4 | up to 42" | up to 72" |
| 70B8000-48 | 2" | 2-4-48 | 66" | 8000 lb | 4 | up to 60" | up to 72" |
| 70B8000-60 | 2" | 2-4-60 | 66" | 8000 lb | 4 | up to 60" | up to 72" |
| 70B10000-48 | 2" | 2-5-48 | 74" | 10000 lb | 5 | up to 63" | up to 72" |
| 70B10000-72 | 2" | 2-5-72 | 74" | 10000 lb | 5 | up to 63" | up to 72" |
| 70B18000-60 | 2" | 250-6-60 | 74" | 18000 lb | 5 | up to 63" | up to 72" |
| 70B28000-72 | 3" | 250-8-72 | 85" | 28000 lb | 5 | up to 77" | up to 96" |

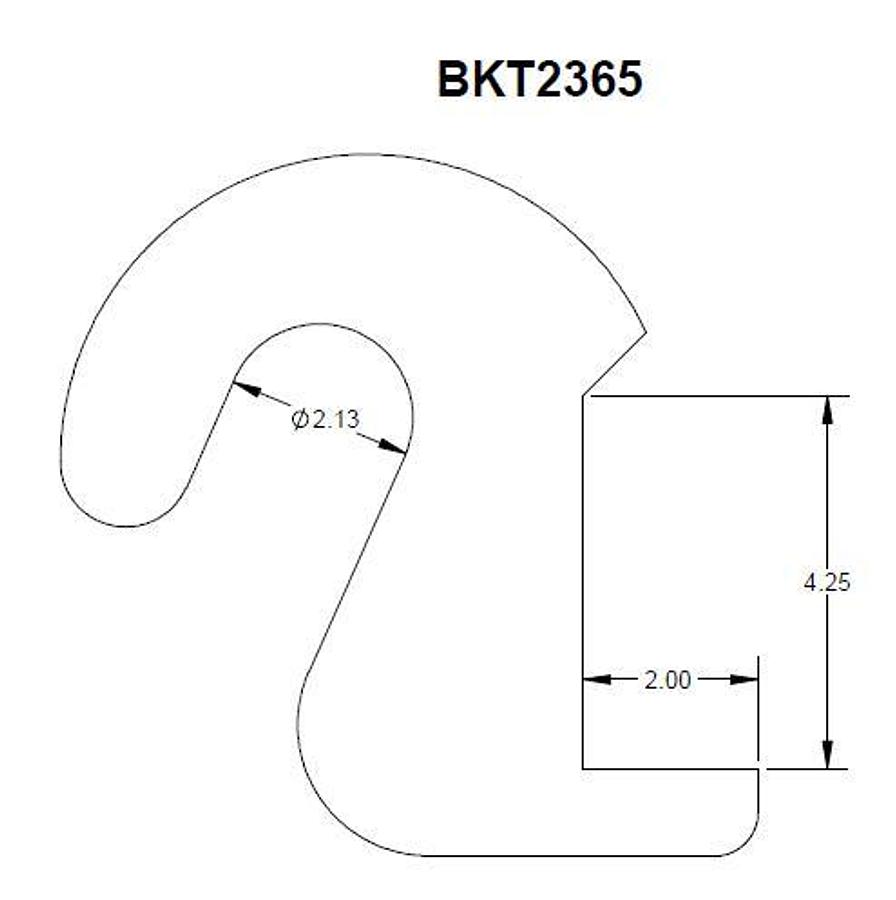

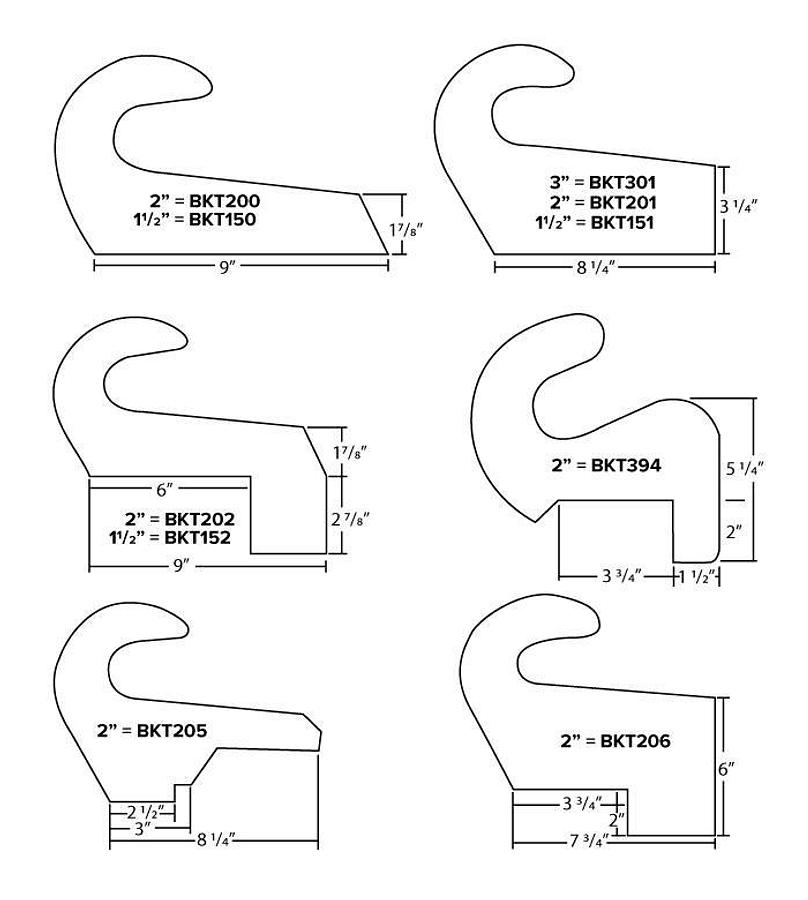

Brackets
CTI

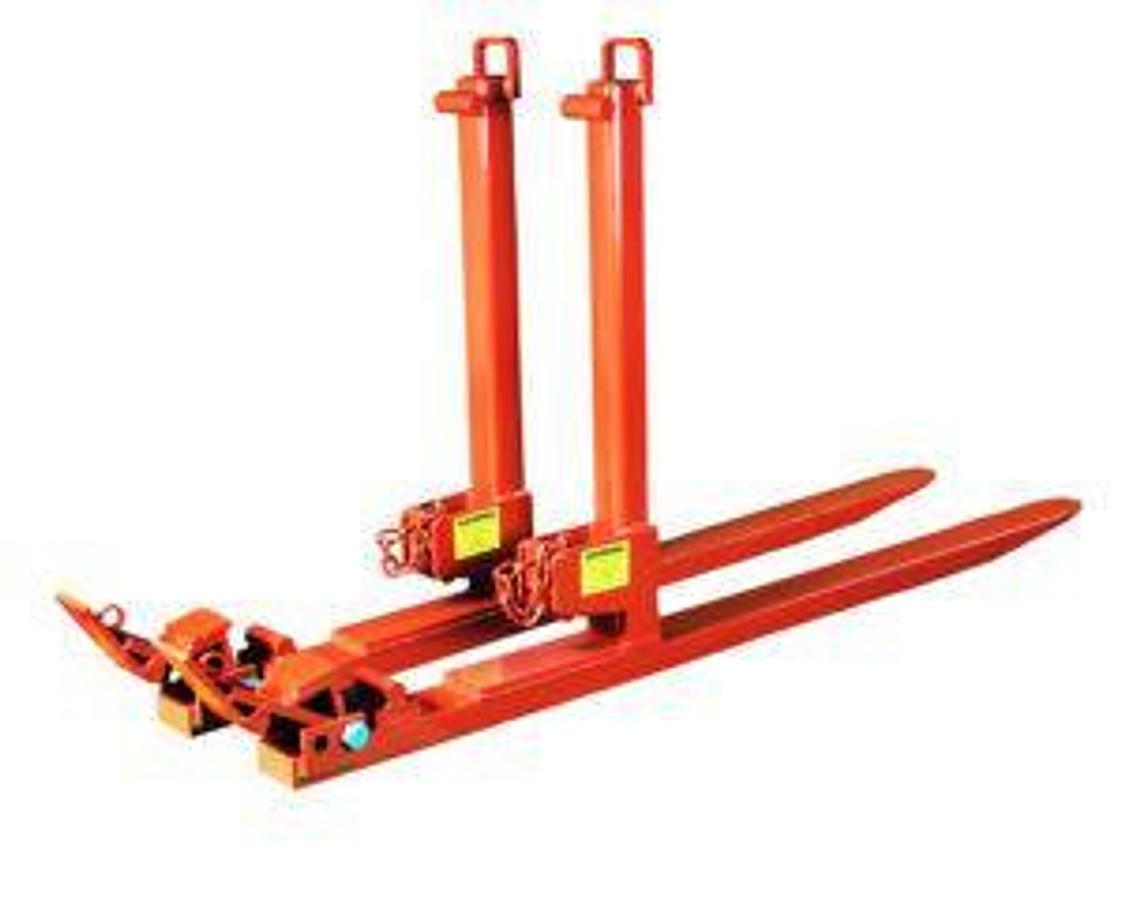

CTI Clamp-on Bucket Forks
| Product # | Model | Lift Capacity (per set) | Tine Length | Tine Width | Clamp Opening | Weight |
| 640-0700 | CL40 | 2200 lb @ 24″ | 42″ | 4″ | 2″ | Tapered Roller |
| 660-0700 | CL60 | 3400 lb @ 24″ | 48″ | 4″ | 2″ | Tapered Roller |

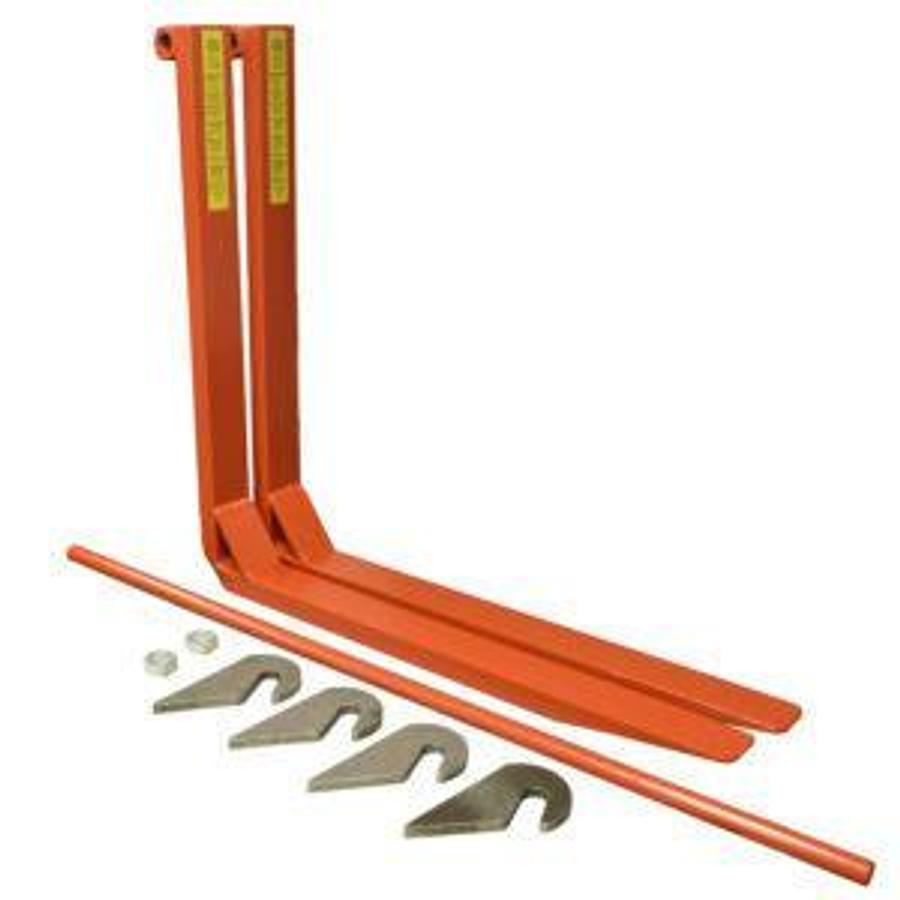

CTI Four in One Bucket Forks
| Product # | Retainer Bars # | Model | OEMs | Bucket Part # | Bucket Size (cu. yd.) | Measure “B” |
| 460-0700 | 460-0015 | MP60 | Caterpillar | 1120938 | 1.25 | 23.5″ |
| 460-0700 | 460-0015 | MP60 | Komatsu | 3126300087 | 1.36 | 21.25″ |
| 460-0701 | 460-0020 460-0020 460-0020 | MP60 | John Deere John Deere Gannon | AT150456 AT186432 AT150456 | 1.37 1.32 1.00 | 21″ 21.75″ 20.5″ |
| 460-0702 | 460-0035 | MP60 | Case | 376288A2 | 1.30 | 19.5″ |
* Measure “B” is the distance from the front cutting edge to the scraper cutting edge across the bottom of the bucket.

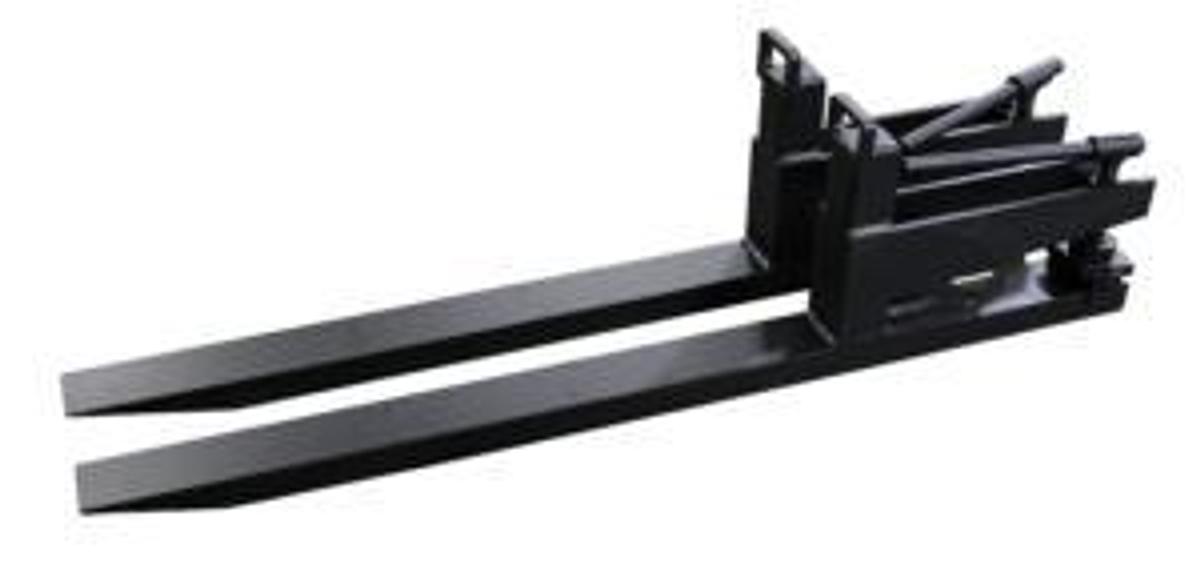

CTI Drive-in Bucket Forks
| Product # | Model | Lift Capacity (per set) | Size | Height | Bucket Opening | Shaft Size | Weight |
| 231-0700 | 60S | 3400 lb @ 24″ | 2″ x 4″ x 48″ | 46″ | 39″ | 1.5″ | 478 lb |
| 232-0700 | 60 | 3400 lb @ 24″ | 2″ x 4″ x 48″ | 54″ | 46″ | 1.5″ | 518 lb |
| 232-H700 | 60H | 3400 lb @ 24″ | 2″ x 4″ x 48″ | 54″ | 46″ | 1.75″ | 595 lb |
| 235-0700 | 80X | 5400 lb @ 24″ | 2″ x 4″ x 48″ | 48″ | 40″ | 1.75″ | 491 lb |
| 233-0700 | 80S | 5400 lb @ 24″ | 2″ x 4″ x 48″ | 54″ | 46″ | 1.75″ | 600 lb |
| 234-0700 | 80 | 5400 lb @ 24″ | 2″ x 4″ x 48″ | 60″ | 52″ | 1.75″ | 628 lb |
Mounting Instructions
Specifications
| Condition | New |
