Lithium stand-up pantograph reach truck  - High maneuverability - High productivity.

or
Call 636-575-3013

Description

RT33-44SP / RT33DP
LithiumStand-Up Pantograph Reach Truck

The RT33-44SP / RT33DP Lithium Single & Double Scissor Stand-Up Pantograph Reach Trucks have a lifting capacity of 3,300 to 4,400 lbs and operate within a narrow aisle. They have lift heights ranging from 177” to 453”, and a fork reaching distance ranging from 22.4” to 41.7”. They offer high-speed lifting and lowering and are equipped with a lithium battery capable of multiple shift operation. High-maneuverability and high-reach capabilities make these reach trucks the ideal choice for your most demanding applications where efficient, narrow aisle, high-lift height material handling is required.


They are equipped with dual independent AC drive motors with separate drive controllers that provide a superior driving experience. Lithium charger included.Boost your productivity with these highly maneuverable, very low maintenance, ultra-smooth, lithium reach trucks.


FEATURES

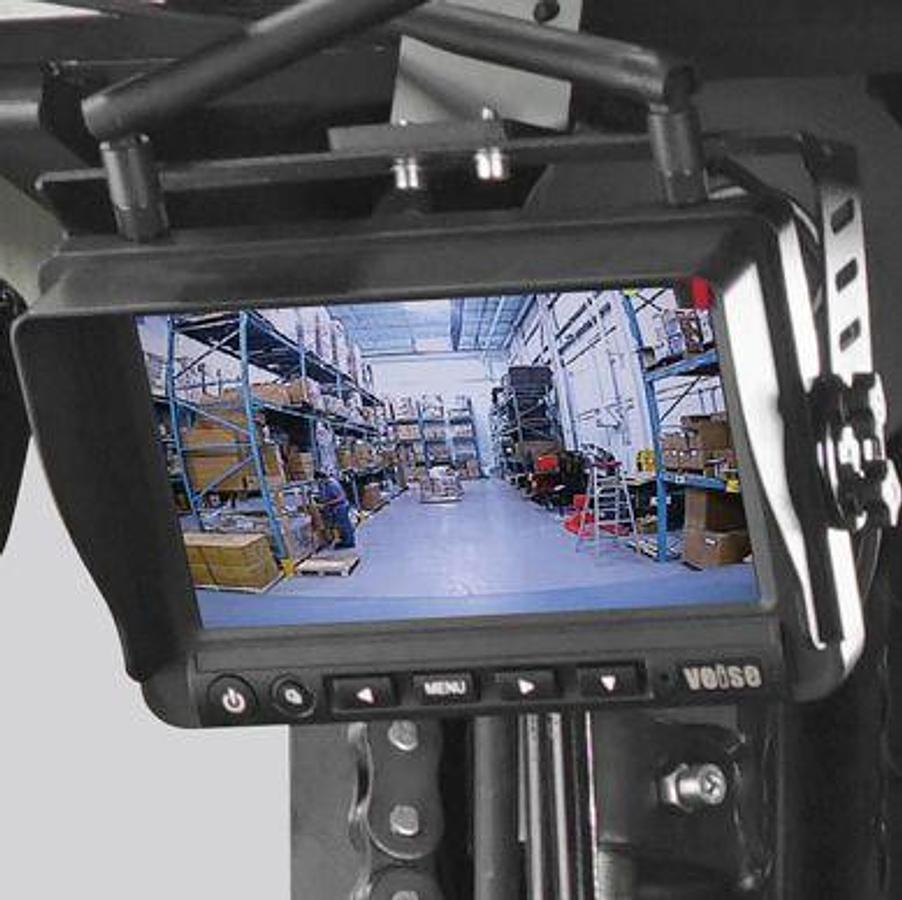

Wireless mast mounted fork view camera with HDMI color monitorprovides an unrestricted view of the pallet and racking for increased productivity and increased safety.

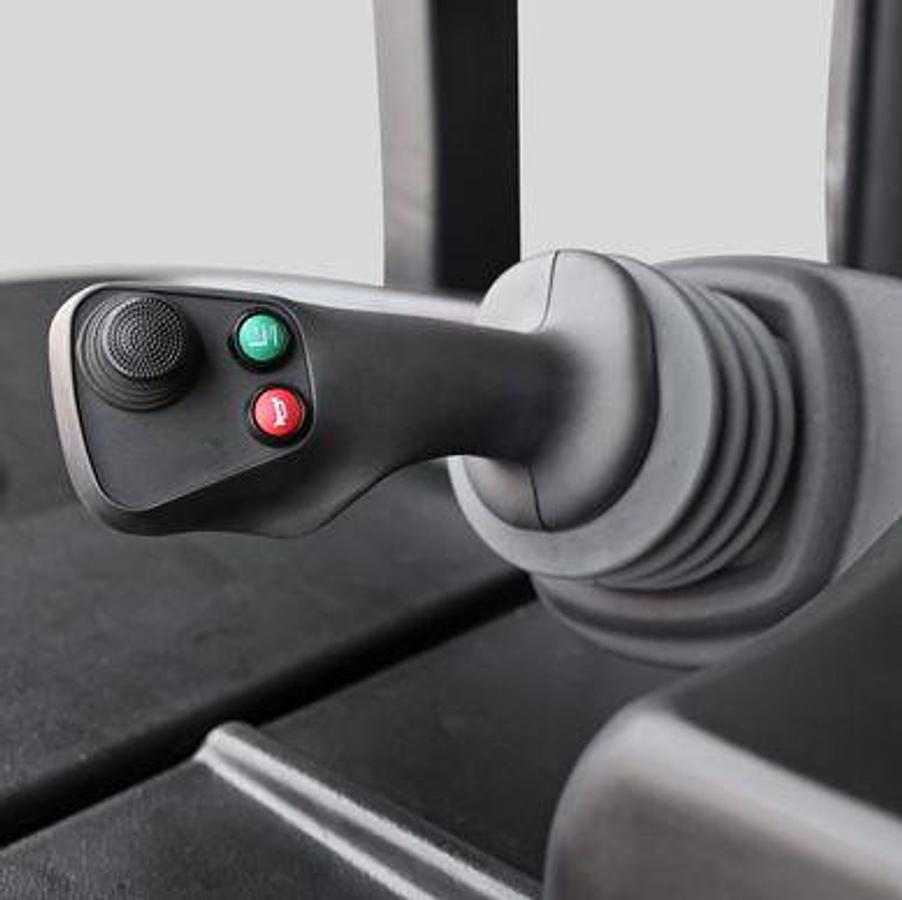

Multi-Functional Handlecontrols key vehicle functions – forward/backward travel speed, side shifting and proportional lifting and lowering.

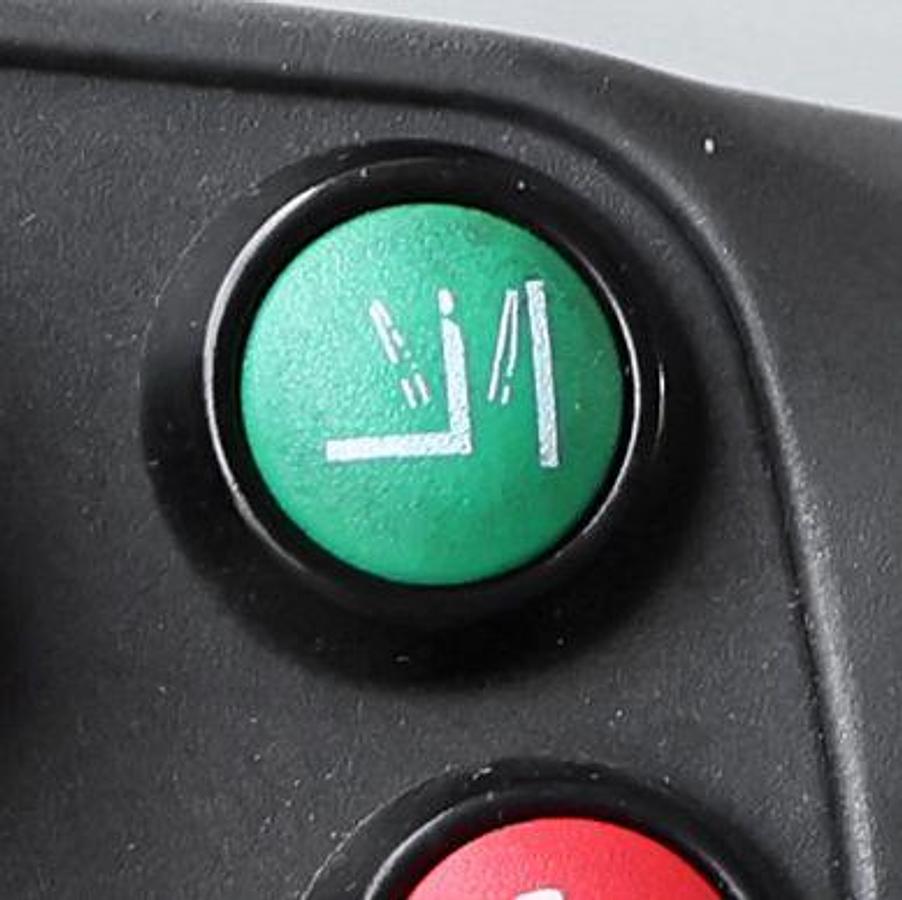

One-Button Tilt Control Systemensures safety by limiting the tilt of cargo when forks are lifted high.

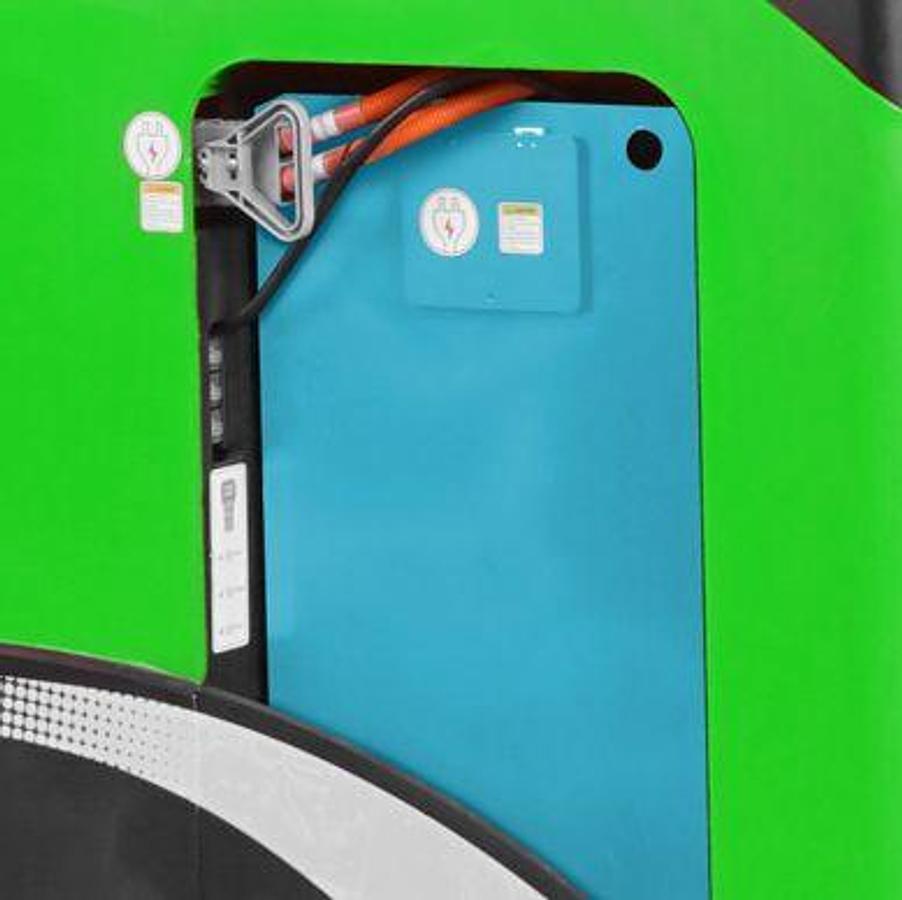

Smart Lithium Battery
Large capacity, fast-charging (2.5 hours) maintenance-free Lithium battery, capable of multiple shift operation. Side extraction reduces maintenance time.

Wireless 4G advanced battery monitoring systemfor remote battery monitoring and system data.

The integrated BMS (Battery Management System)controls all important parameters and performance of the lithium battery.

Curtis Controller and CAN-BUS Technology
Easily check condition and troubleshoot with Curtis controller and CAN-bus technology.

Adjustable Backrest and Hip Padcontour the body to ensure operator comfort throughout the entire work shift.

Adjustable Armrestcan be adjusted to maximize the comfort of operators of different heights.
The Floor Suspension Systemadapts to the weight of the operator and provides impact and vibration protection.

Dual Independent AC Drive Motorswith separate drive controllers provide superior maneuverability while turning.

AC Drive and Gearbox Technologyensure accurate control and travel speed.

Dual-Brake/Presence Pedal Designprotects the operator and the forklift. If both pedals are not depressed, the forklift will be not travel in any direction.

Large LED Screen
Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.

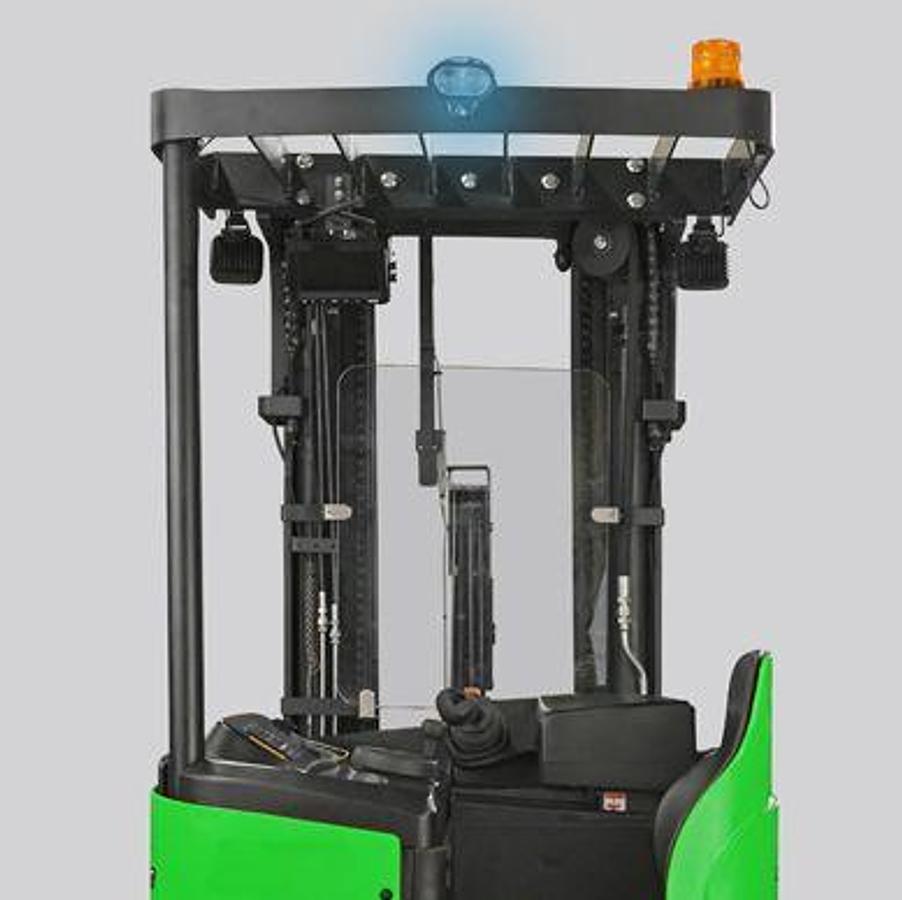

Wide View and Clear Visibility
Cab design, open view mast and overhead guard gives operator a clean line of site to the load and their surroundings for increased efficiency and improved safety.

Equipped with LED headlights, safety blue light and a buzzerfor safe driving.

USB connectorfor charging and powering of additional devices during operations.

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.

Specifications

ManufacturerNoblelift
ModelRT33-44SP / RT33DP
ConditionNew
Unit TypeLithium Man-Up Order Picker - Single Reach
Power36V / 560Ah Lithium Battery
Battery Charger36V/200A
Fork Dimensions42" Standard
Max Lift Height177" 193" 256" 295" 334" 374" 413"
Mast Stages3
Turning Radius71.9" 71.9" 71.9" 71.9" 71.9" 71.9" 73.8"
