Electric self-propelled scissor lifts - Proven performance - Safe.
Description
SCISSOR LIFTS
Self-propelled electric(6) Models available. Maximum working heights from 18'-9" to 44'-9"
500 to 1,000 lbs. capacity
Large working platforms with built-in extension
platforms AC Power and airline to platform
Full height travel improves operator efficiency Portable operating boxes allow users to operate
easily outside the platform
Tight turning radius for operating in tight spaces
Many safety features
Self-propelled electric
SC Series Electric Scissor Lifts have a compact footprint and are designed for optimal performance, increased productivity and ease of maintenance. Operators can drive, steer and lift directly from the platform, at any height, to achieve continuous operation.
Work quieter and safer with NOBLELIFT zero-emission, low maintenance scissor lifts.
platforms
easily outside the platform
All models available with lithium battery also.
FEATURES

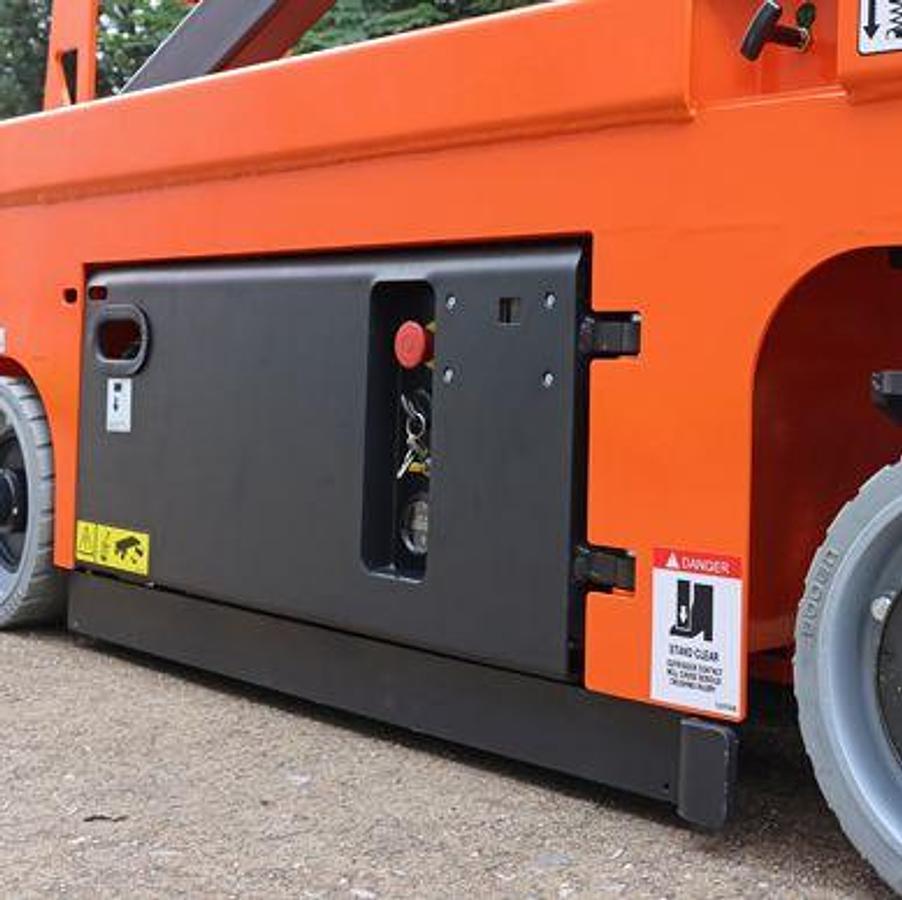

Pot Hole Protection System
When the operating vehicle is in a lifted position, the pot hole protection board will automatically open.

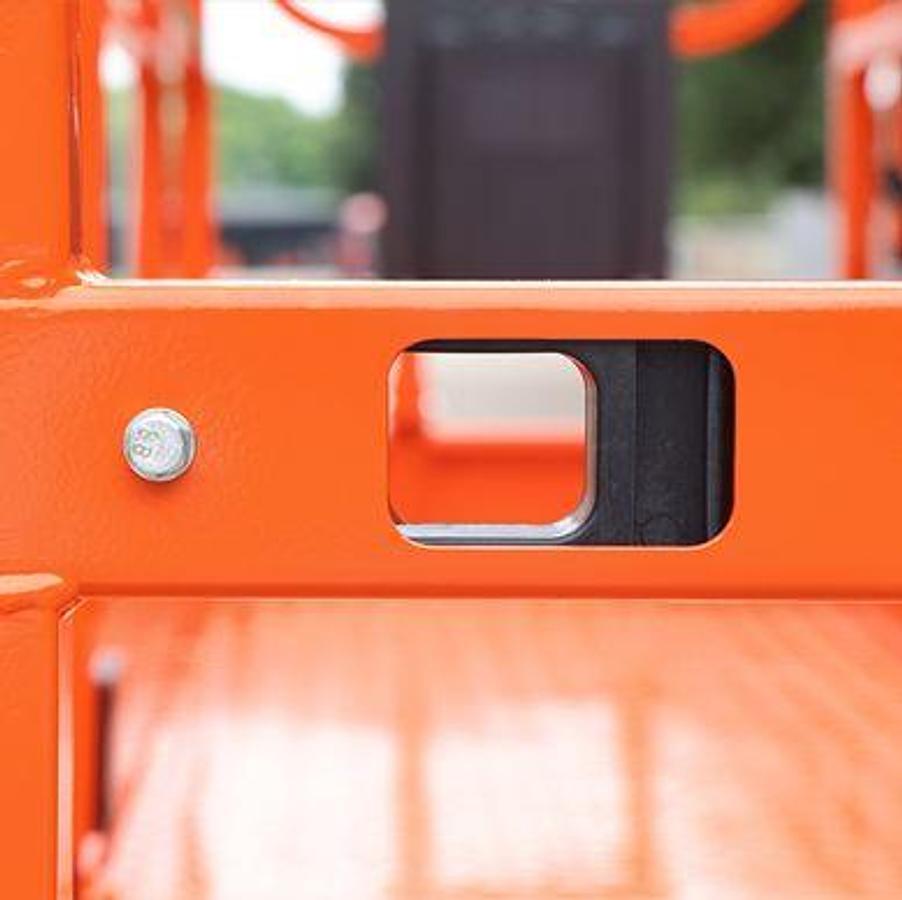

Self-Locking Platform Door
Self-Locking platform door ensures worker safety.

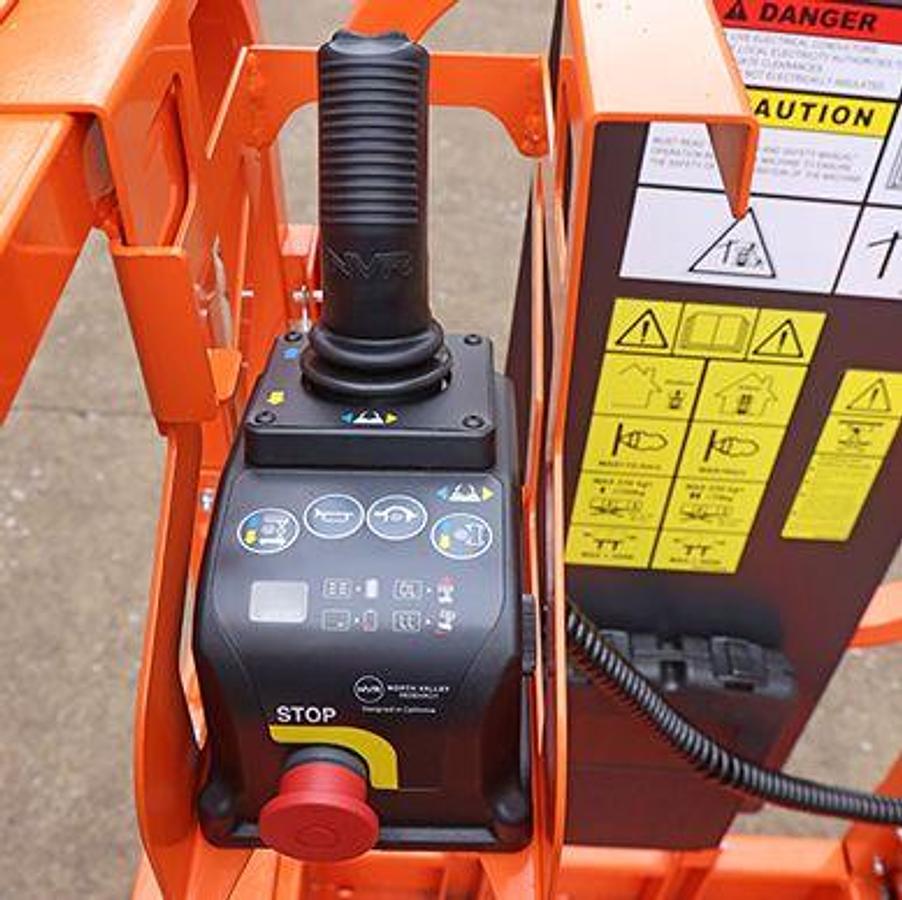

Proportional Control Handlefor lifting and traveling ensures smooth operation.
Incline Protection
When the operating vehicle exceeds maximum operating angle, this system will automatically alarm and disable ALL actions.

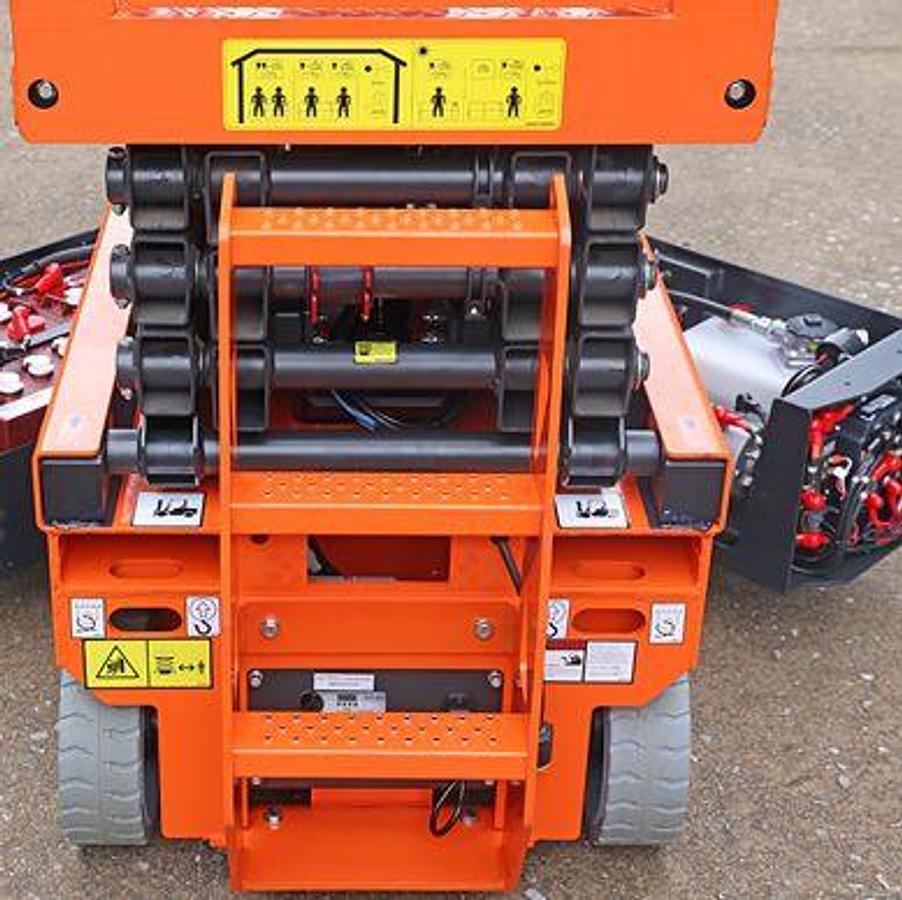

Swing Out Component Trays
Swing out component trays on chassis sides allows for easier maintenance.

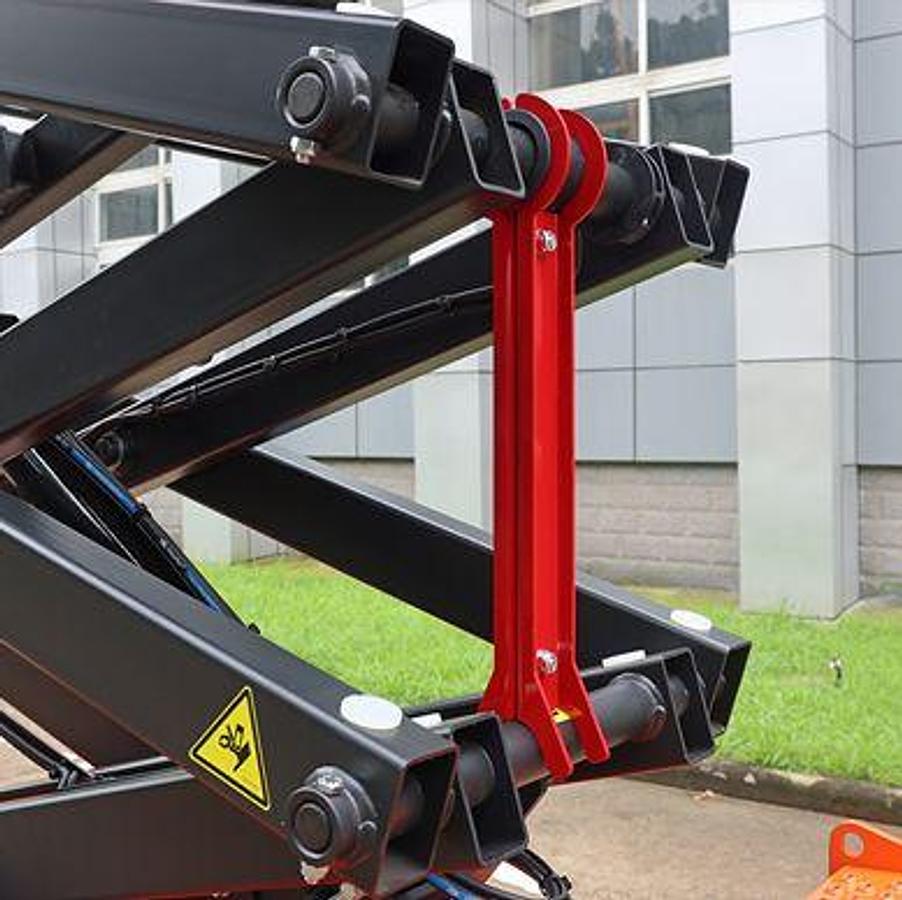

Safety Maintenance Support Bar
Provides support during maintenance ensuring personal safety.

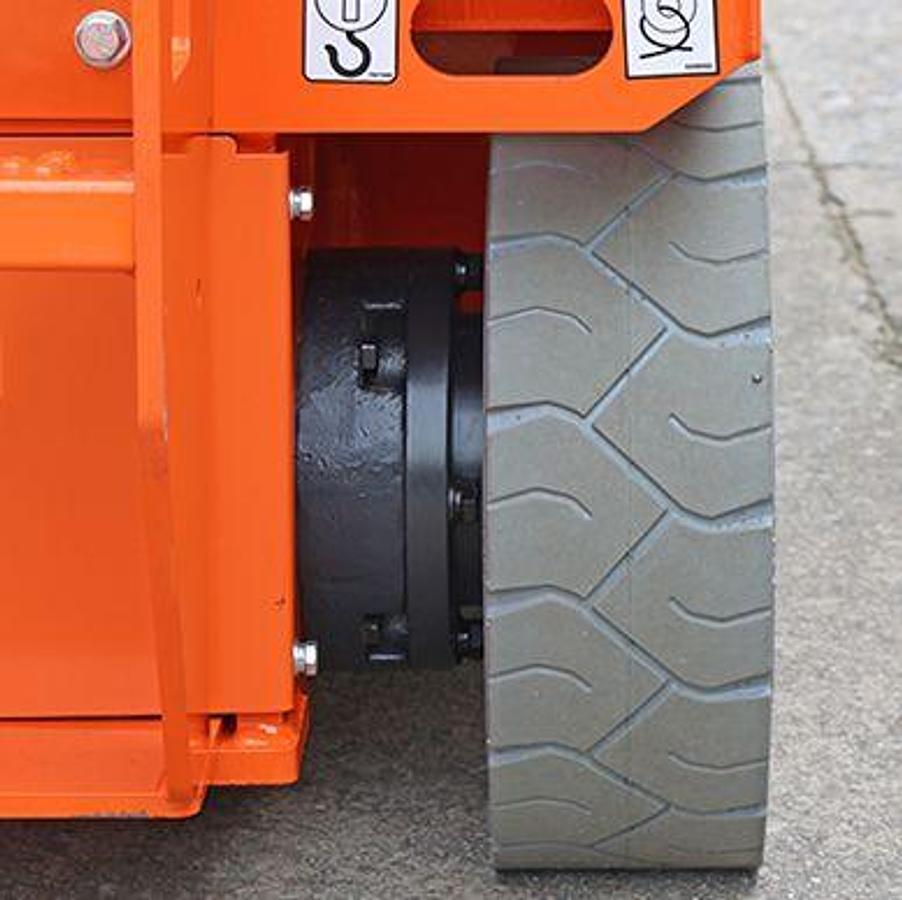

Front Wheel Hydraulic Dynamic Brakingeliminates sliding while working on slopes.
Emergency Lowering System
When power is lost, this system will safely bring the operator
to the ground.
Specifications
| Manufacturer | Noblelift |
| Model | SCISSOR LIFTS |
| Condition | New |
| Unit Type | Electric Scissor Lift, Front Wheel Drive (All models are available in lithium-ion as an option) |
| Load Capacity | 530lb 500lb 500lb 1,000lb 700lb 700lb |
| Max Working Height | (outdoor) / 20'-9" / 32' 39' / |
| (indoor) | (indoor) |
| Integrated Charger | 24V/15A |
| Max Working Slope | 1.5/3 Degrees 1.5/3 Degrees 1.5/3 Degrees 1.5/3 Degrees 1.5/3 Degrees 1.5/3 Degrees |
| Power | 24V/80Ah 24V/200Ah 24V/200Ah 24V/200Ah 24V/200Ah 24V/240Ah |
| Turning Radius | 5'-1" 5'-9" 7'-2.6" 8'-2.4" 8'-2.4" 8'-2.4" |
| Indoor/Outdoor Use | Indoor Indoor/Outdoor Indoor Indoor/Outdoor Indoor/Outdoor Indoor |
| Platform Size (LxW) | 51"x28" 66"x29" 89"x32" 89"x44" 89"x44" 89"x44" |
