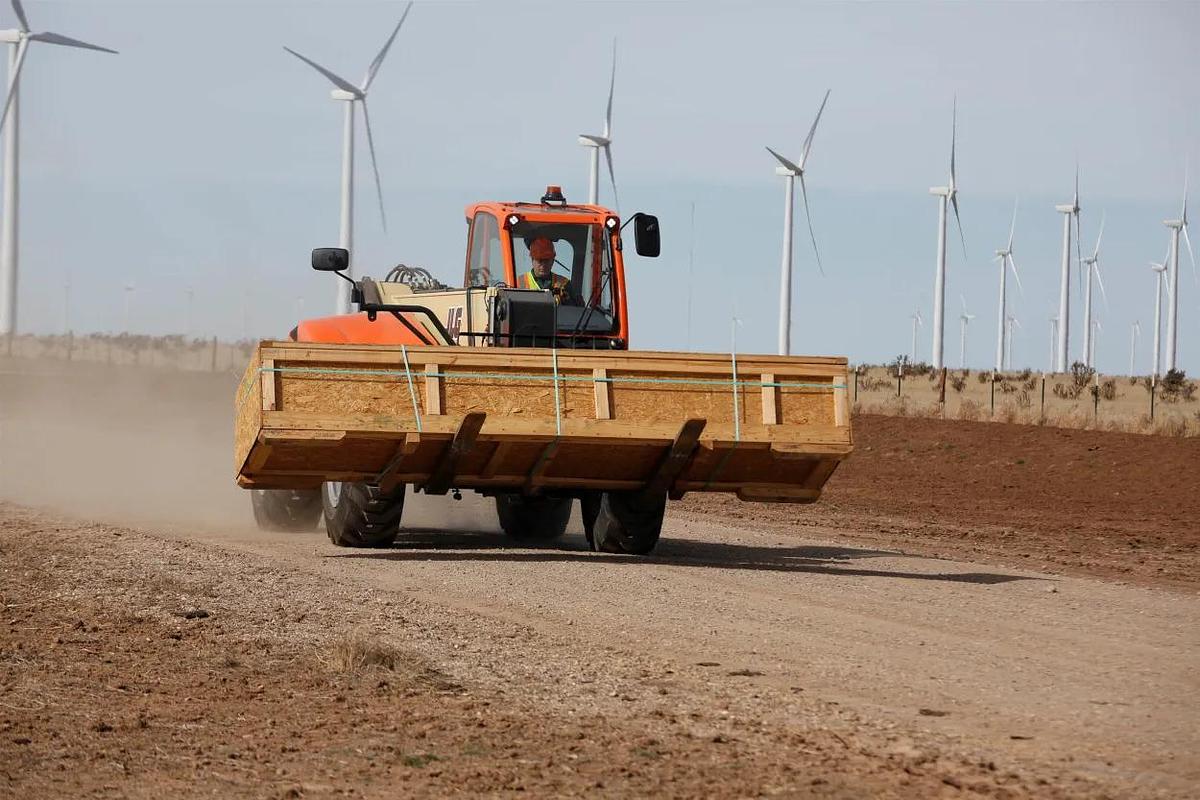

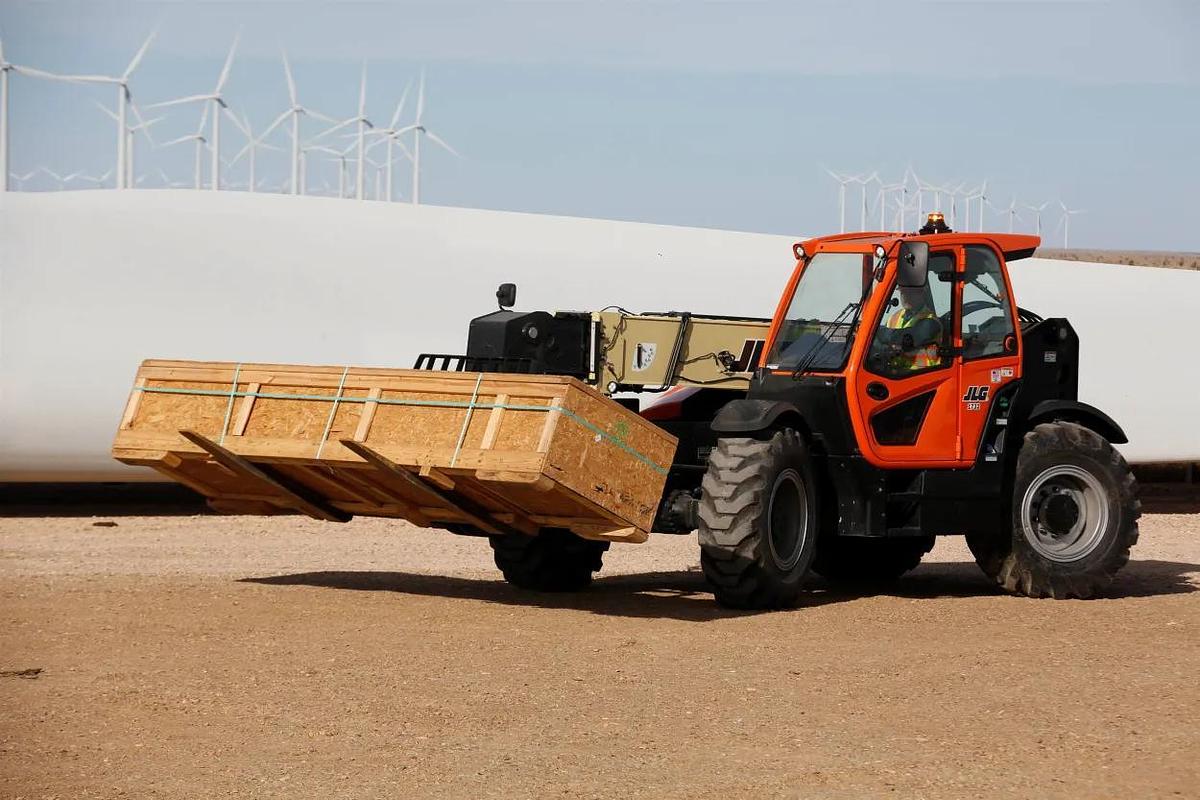

16,000-17,000 lb. Telehandler, 31 ft., Variable Reach
Description
Lift, stack and load heavy equipment and machinery with this high-capacity telehandler rental. The maximum lift capacity ranges from 16,000 to 17,000 pounds, depending on the model. With the boom extended, operators can still lift up to 9,500 pounds. Our high-capacity diesel forklift rental has an operating weight of 31,500 to 37,500 pounds. Manufacturers include JLG and Xtreme.
16,000-17,000 lb. maximum lift capacity
31 ft. maximum fork height
17-18 ft. maximum forward reach
4WD circle, 4WD crab or 2WD front
Uses: Ideal for lifting, stacking and loading heavy equipment and materials
Specifications may vary within the ranges provided, depending on the model you receive
Specifications
| Condition | New |
| Cat Class | 233-1695 |
| Max Load Capacity | 16,500-17,000 lbs. |
| Max Fork Height (MFH) | 31 ft. |
| Extended Boom Load Capacity | 9,500 lbs. |
| Max Forward Reach | 17 ft.-18 ft. 7 in. |
| Forward Extended Load Capacity | 5,500-8,000 lbs. |
| Machine Height | 8 ft. 2 in.-8 ft. 9 in. |
| Outside Turn Radius | 12 ft.-13. ft. 2 in. |
| Operating Weight | 31,500-37,500 lbs. |
| Overall Width | 8 ft. 1 in.-8 ft. 5 in. |
| Frame Leveling | 8-11° |
| Drawbar Pull | 23,000 lbs. |
| Output | 130 HP |
| Steering Modes | 4-wheel circle, 4-wheel crab, 2-wheel front |
| Fuel Type | Diesel |
