Description

FE4P130-150-175N
Lithium-Heavy Duty Electric Forklift

The FE4P130N-150N-175N Series 13,000 - 15,000 - 17,500 lbs capacity Heavy Duty Lithium Forklifts are designed for heavy lifting and work well for indoor and outdoor applications. They are structurally engineered to be tough like an internal combustion forklift, but with all the advantages of lithium. AC drive technology is used to achieve high performance with low operating and maintenance costs.Ideal for your most demanding applications: metallurgy, ports, container yards, automotive, mold manufacturing, paper roll handling, lumber yards, brick and stone distribution centers.

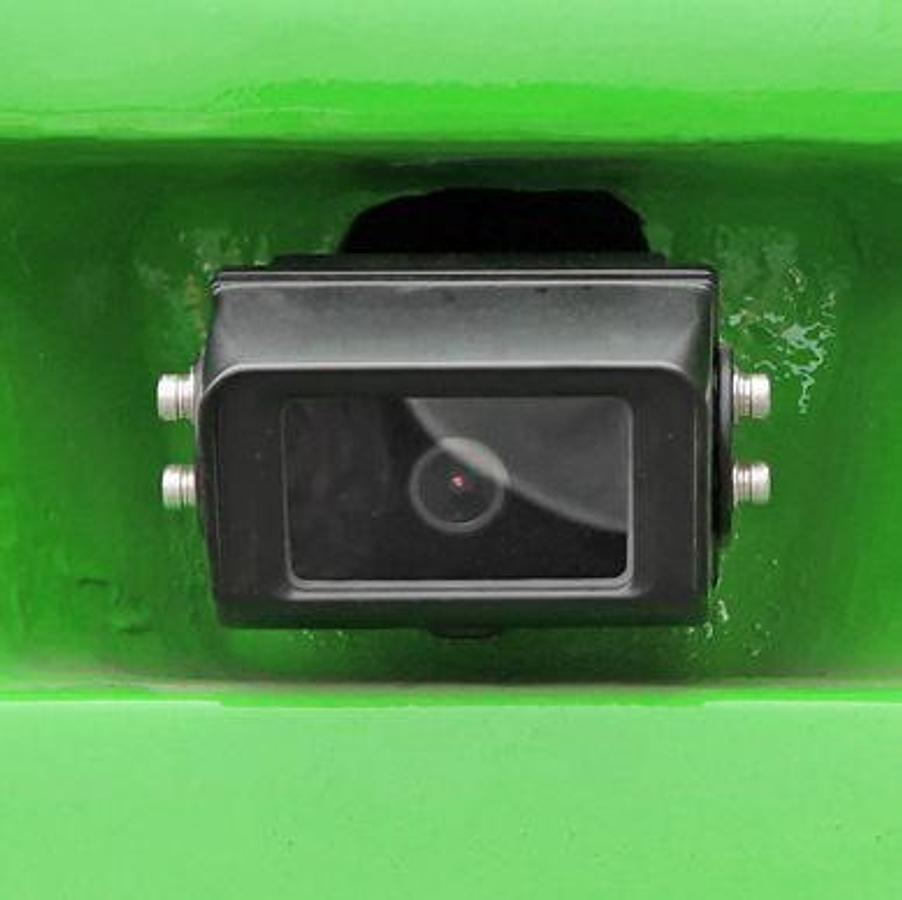

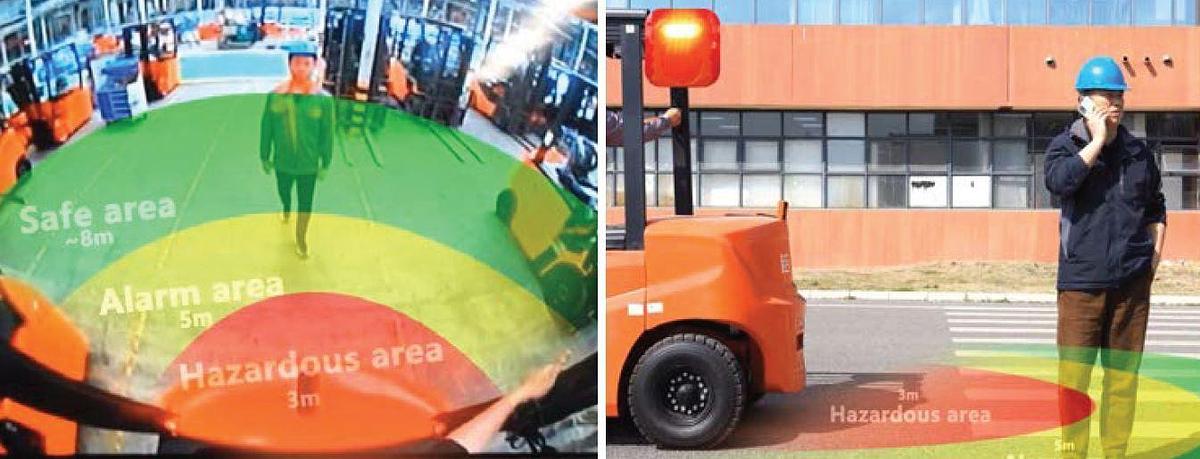

Equipped with a powerful96 volt lithium battery capable of multiple shift operation these forklifts come fully loaded with many extras as “standard”, including a back-up monitor, coupled with theAI pedestrian detection system that sounds an alarm when it detects a pedestrian. If a pedestrian gets too close, it will stop the forklift. Lithium charger included.


In-Motion Controller CAN-bus Technology

Advanced In-Motion electronic controller regulates and monitors all required forklift functions in all situations to assure the AC motor's best efficiency and performance. This technology also provides easy troubleshooting and diagnostics.

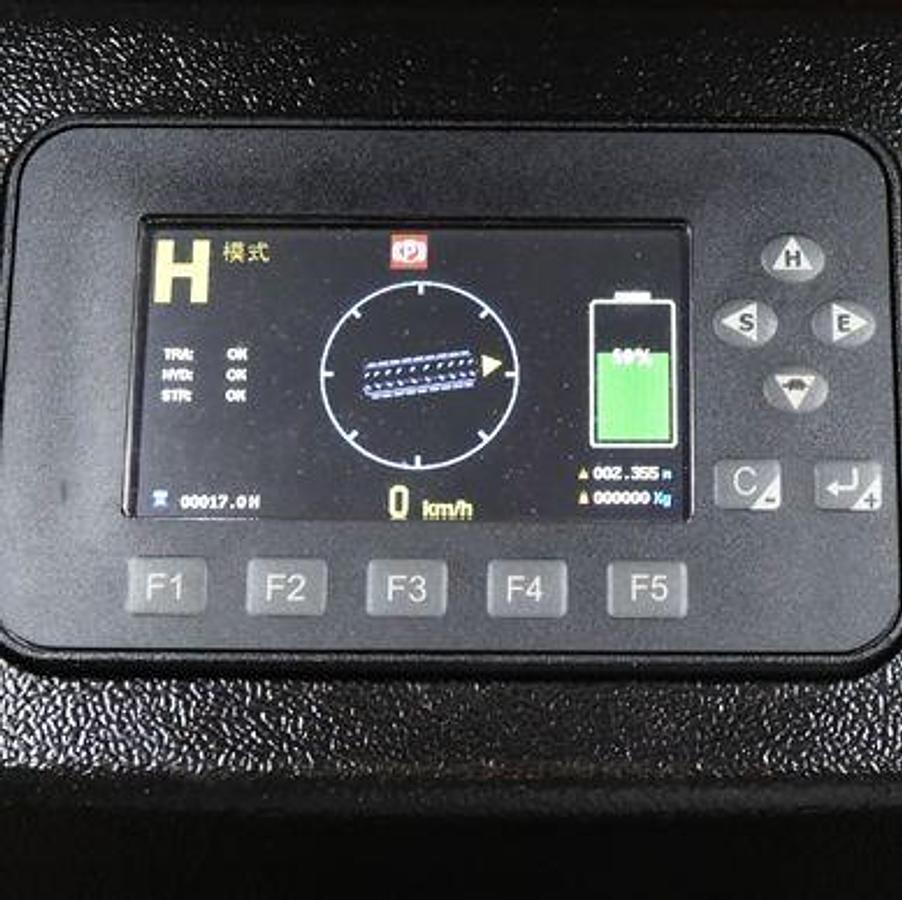

Multi-Function LED Display Screenwith fault alarm, low battery reminder. High, medium and low speed modes.

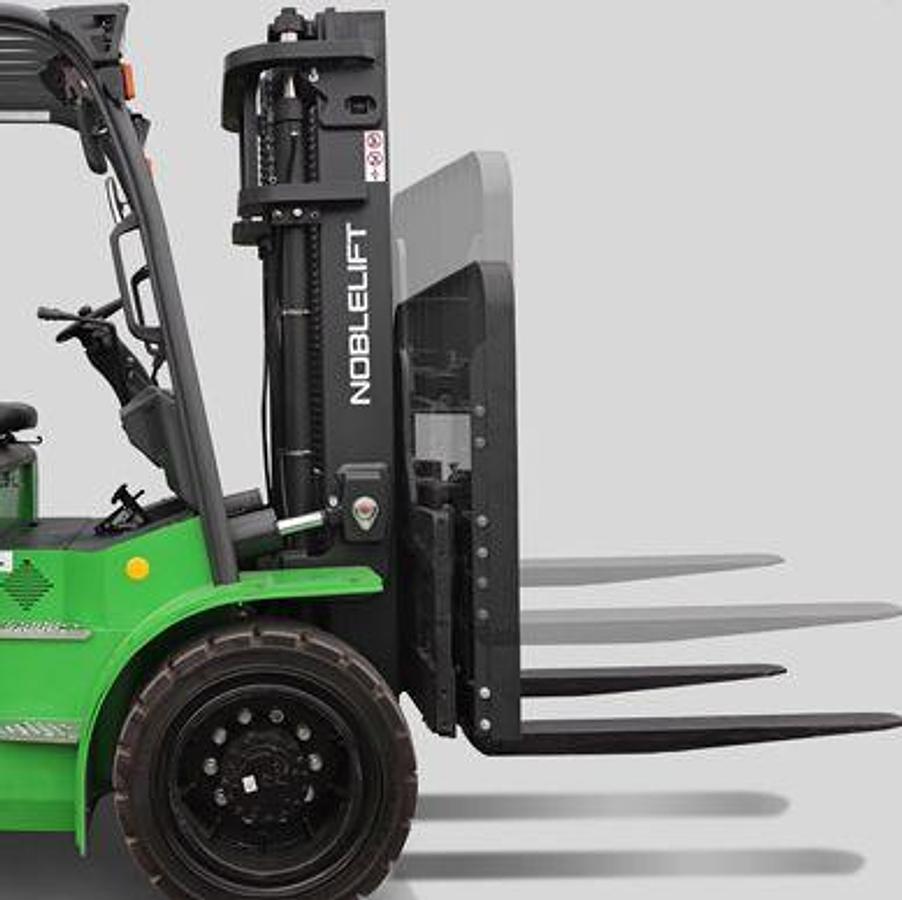

Intelligent Buffering when descending to the ground, effectively protects the ground and cargo from damage.


Automatic Decelerating

Automatic decelerating while turning, improves safety, stability and operator comfort.


Draw Bar Tow Capacity of 8,100 lbs.


Easy Maintenance

Oil pump motor and controller are positioned on each side of the forklift, and can be accessed with tool-free removable side panels.


A split hydraulic oil tank provides hassle-free maintenance and cleaning, while a rotary hydraulic oil return filter allows for easy replacement.


Tilt cylinder boots protect tilt cylinder and oil seals from the environment, prolonging cylinder life.


Waterproof design - IP4 Rated.


LED Lights

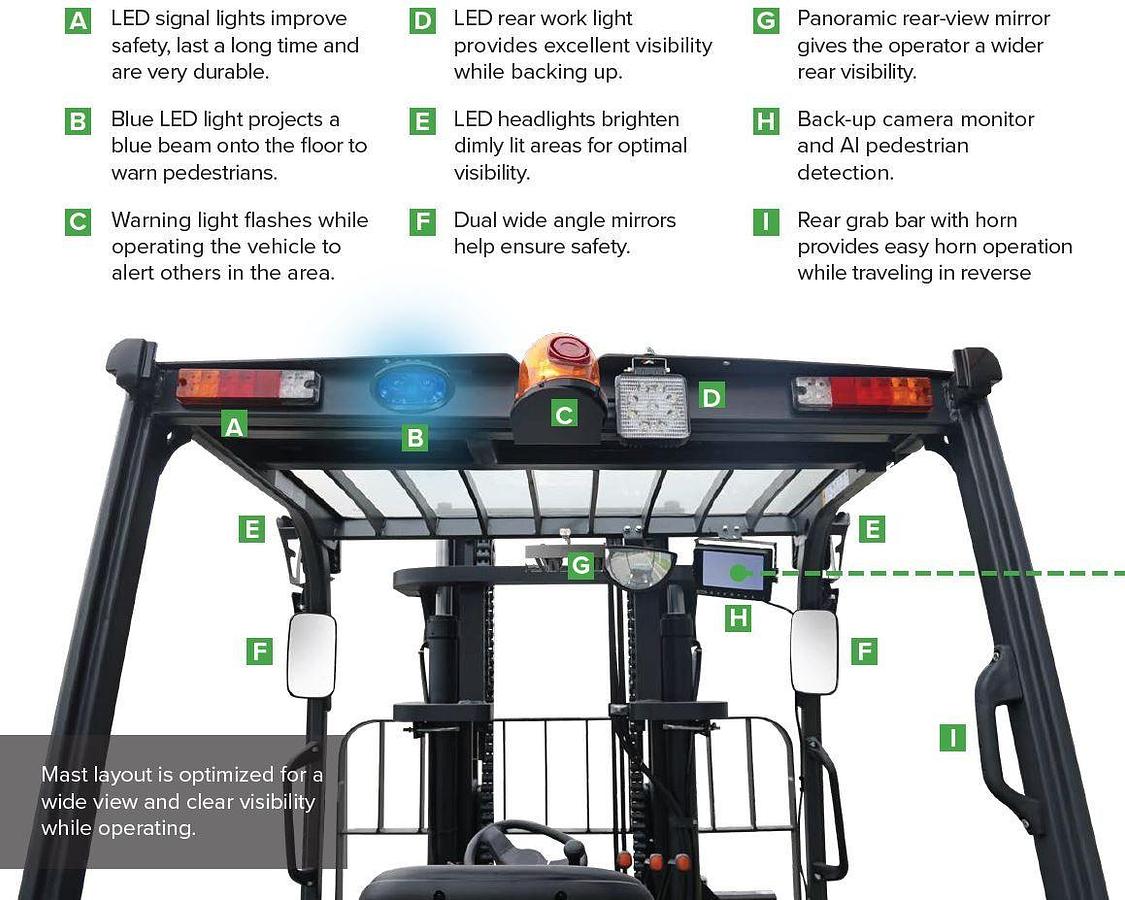

Equipped with LED lights: headlights, front turn lights, rear combination lights, rear work lights, blue light, warning lights. Bright light with low power consumption allows you to operate freely at night.


USB connector for charging and powering of additional devices during operations.

Specifications

ManufacturerNoblelift
ModelFE4P130-150-175N
ConditionNew
Unit TypeLithium 4-Wheel Electric Forklift, Front Wheel Drive
Load Capacity13,000lb 15,000lb 17,500lb
Load Center24" 24" 24"
PowerLithium-iron phosphate: 96V/412Ah Standard
Battery Charger96V/200A
Fork Dimensions48" Standard 48" Standard 48" Standard
Std Lift Height118" to 236" depending upon mast configuration
Collapsed Height98.4" 98.4" 98.4"
Mast Stages2 or 3
Turning Radius117.3" 117.3" 117.3"
